- Photos from previous owner
- 383ci stroker motor
- Header clearance problem
- Porting the heads & intake
- Ball joint problem & crash
- Rust spots & body damage
- Covan's Classic dash
|
|
|
|
History: Photos from previous owner: |
more pictures > |

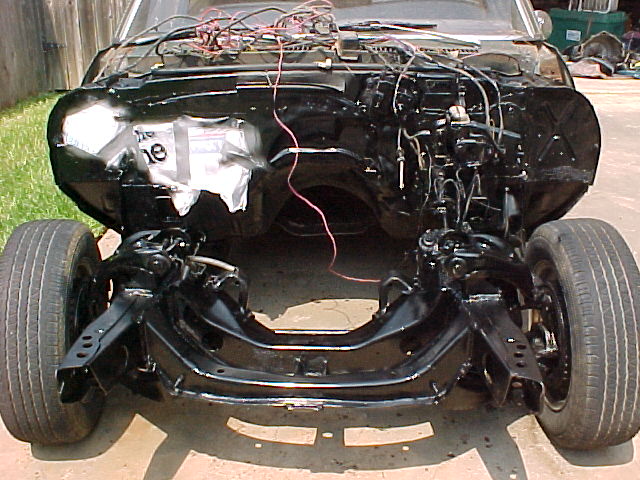

Fenders off car to paint firewall & front chassis
|
Old Edelbrock carberator
|

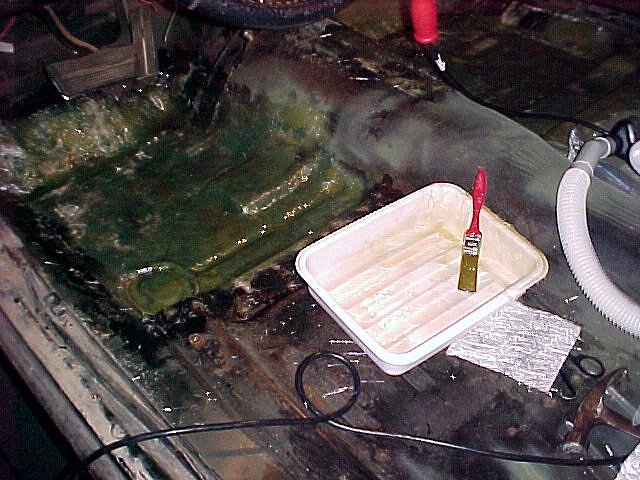

Fiberglass work on the floorboards
|
Fenders off car to paint firewall & front chassis
|

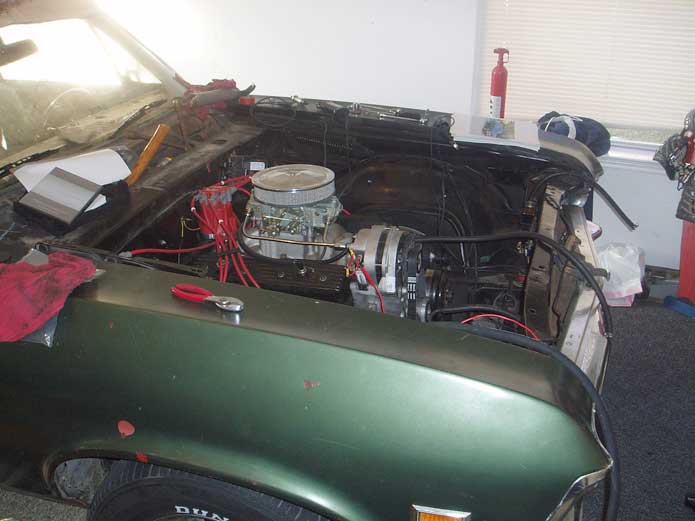

383ci Engine, roller rockers, & Holley carb |
|

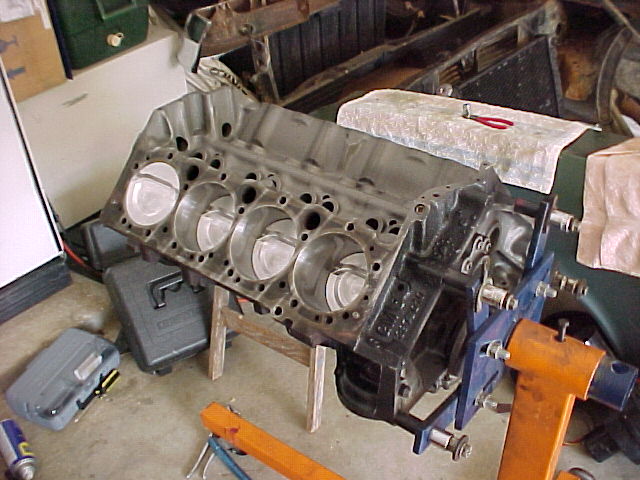

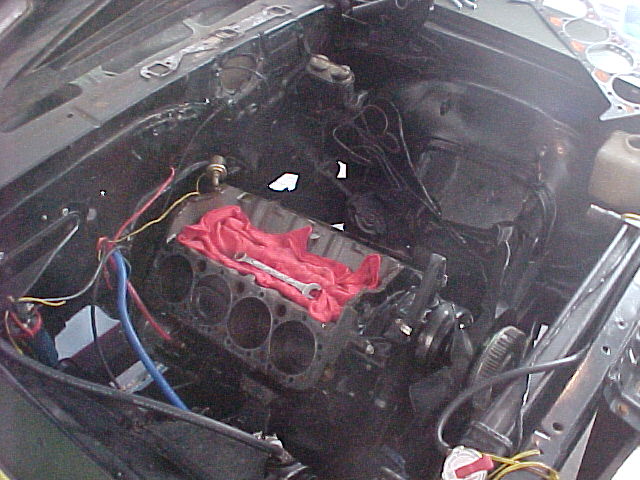

Short block bored .040 over, 383 stroker crank
|
Look at the carbon build up from the carb not being adjustted correctly
|
1.6 roller tip rocker arms - flat tapped hydrollic roller cam
|
Try not to use a small air cleaner like this on a big motor
|

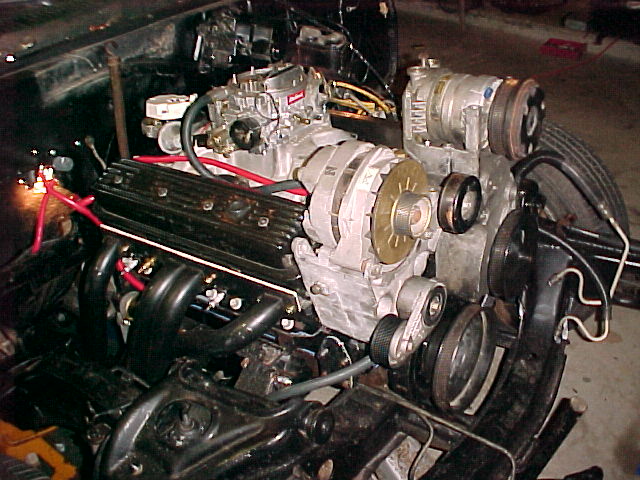

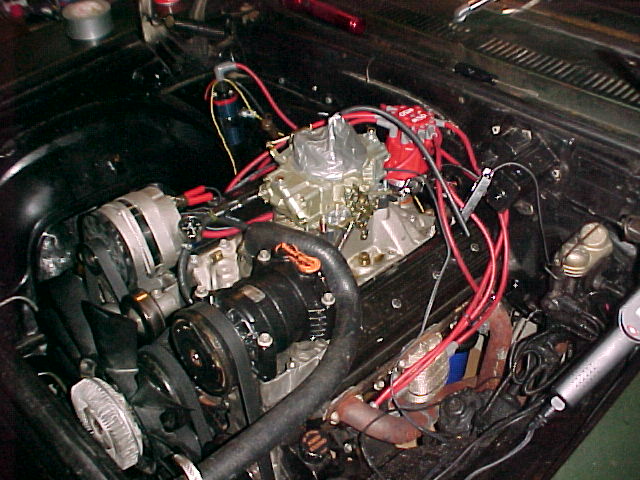

Serpentine setup off of a 98 Chevy Tahoe
|
Headman headers don't leave much room for spark plugs
|

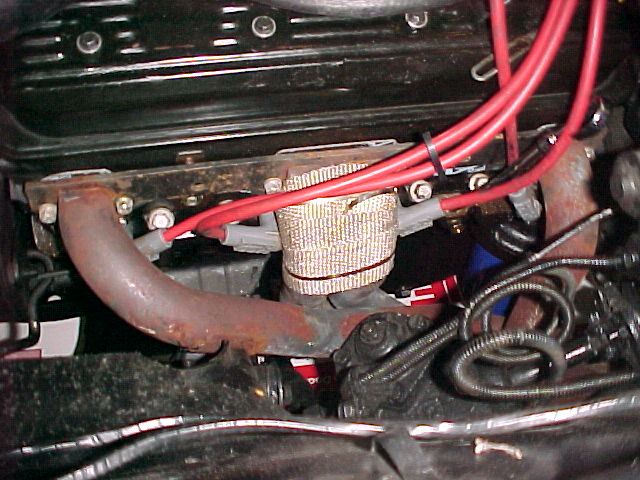

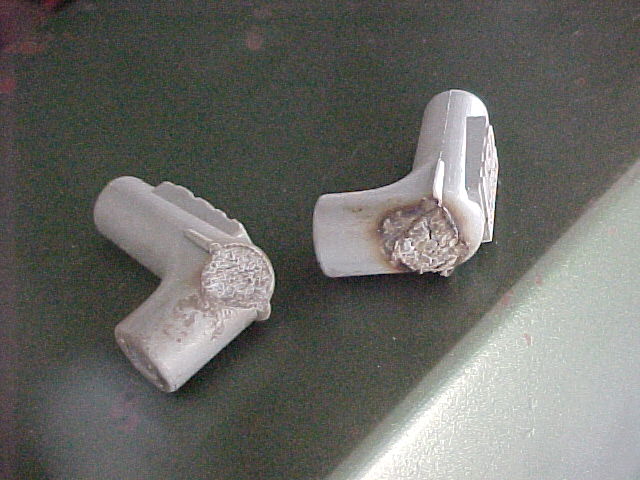

Header wrap to prevent burning spark plug boots
|
Adjusting the valves while the car is running
|
Original dash & gasket-matching the Vortec heads |
|
Original dash cluster
|
Porting out the intake runners on a set of Vortec heads
|
Before gasket-matching/ port-matching the heads
|
After gasket-matching/ port-matching the heads
|
Original seat, body mount, and previous owner's ball joint install: |
|

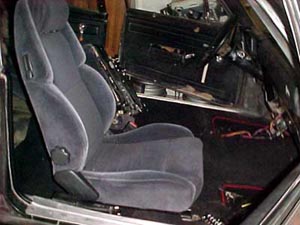

Seats that came with car, possibly from a Nissan 300Z
|

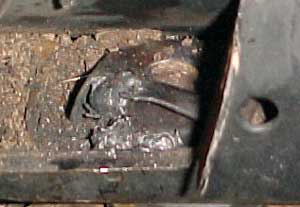

Horrible looking body mount on front firewall
|

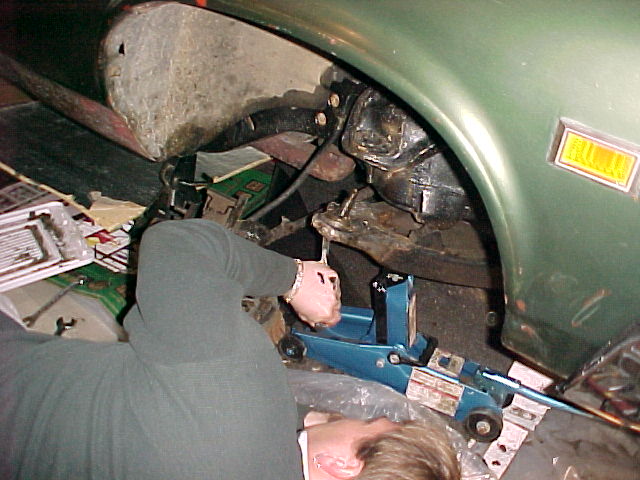

Original owner changing old ball joints
|
Original owner changing old ball joints
|
This happened on the way home, the day we bought the car! |
|
On the way home from buying the car, we decided to test the condition it was in. In an empty parking lot, we were spinning in circles and brushed up against a curb. This was the result. The previous owner didn't install the bottom ball joints correctly and the passengerside ball joint popped out! If this would have happened at the track, it would have been really bad. |

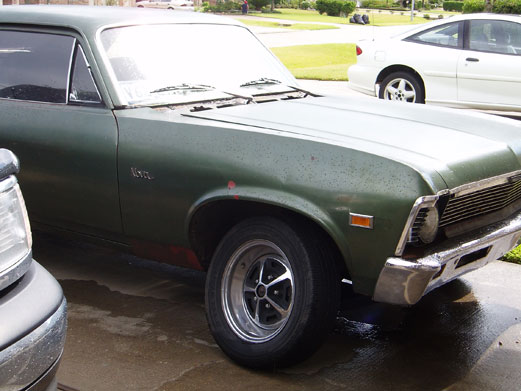

This car is ready for a NASCAR track... going backwards
|
That doesn't look normal
|

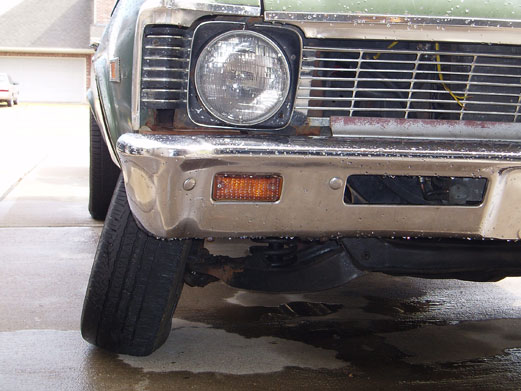

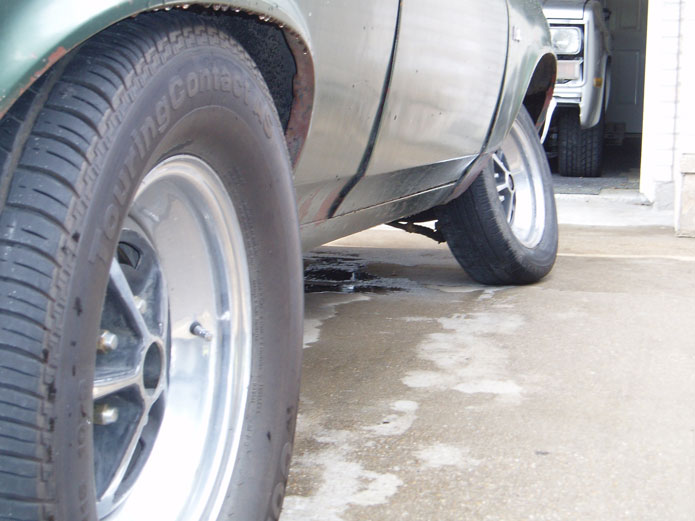

Check out the gangster lean
|
Passenger side ball joint hanging out
|

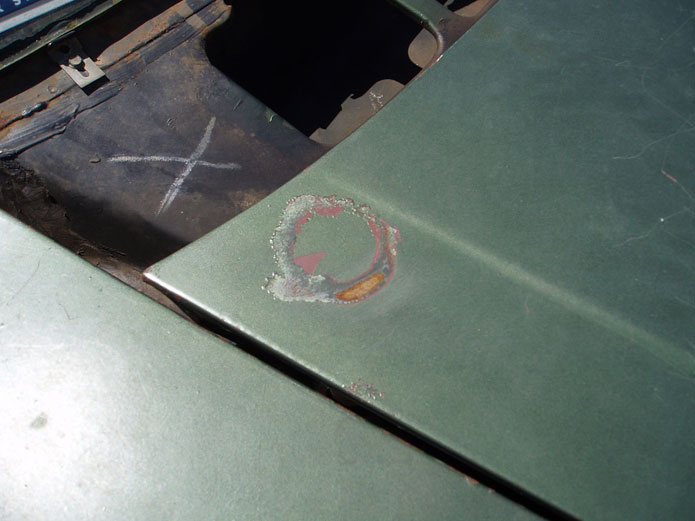

Here are the rust spots and body damage areas: |
|

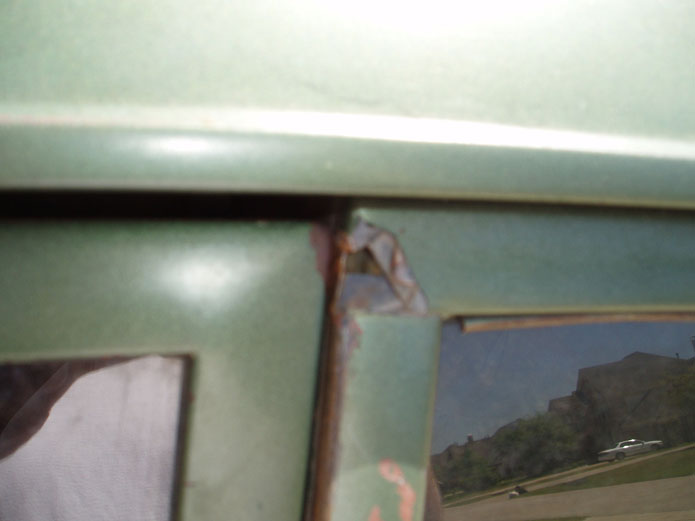

This is what happens if the door sags and the corner catches
|

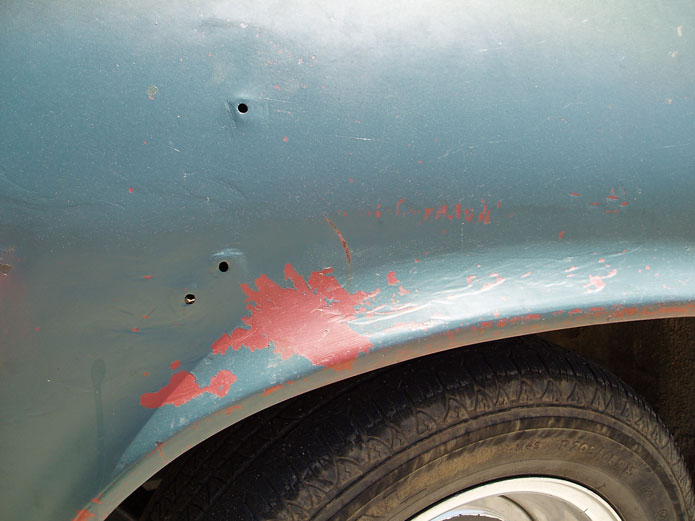

Driver side front fender
|

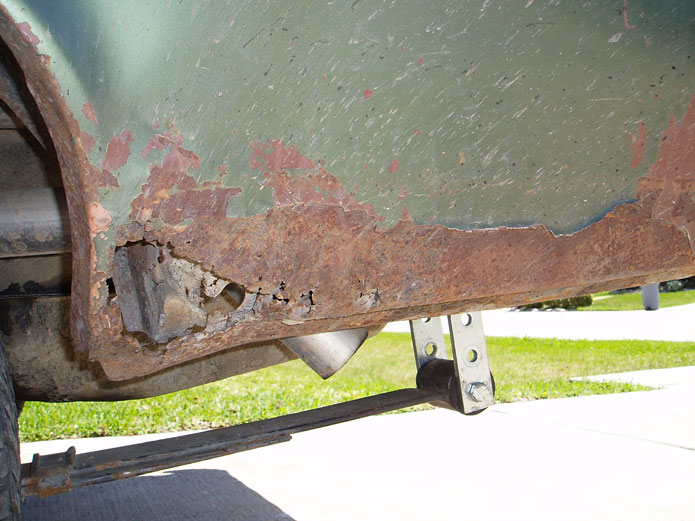

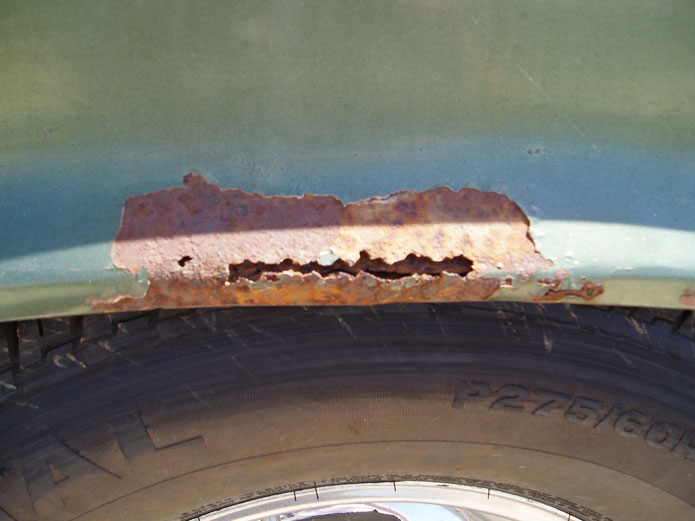

Driver side rear quarter panel
|

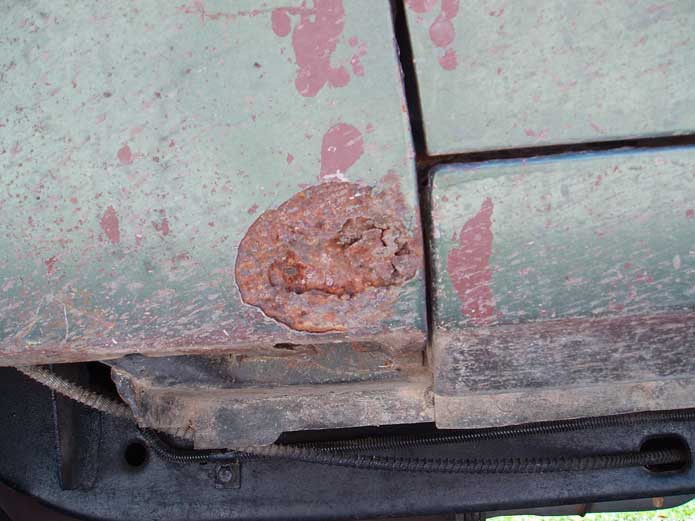

Passenger side rear fender
|

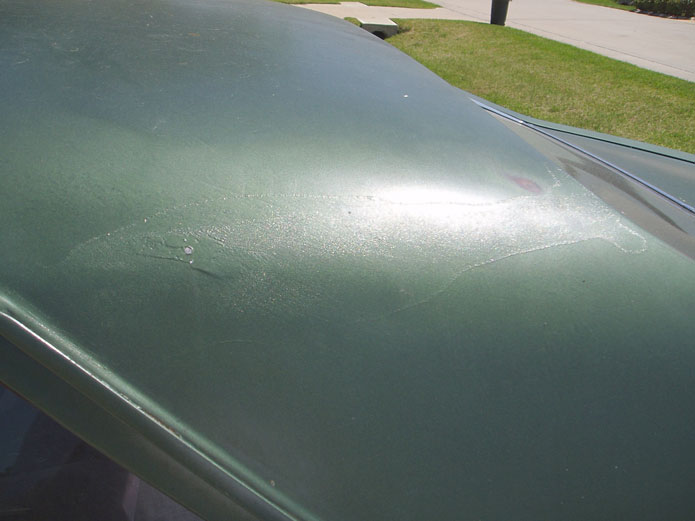

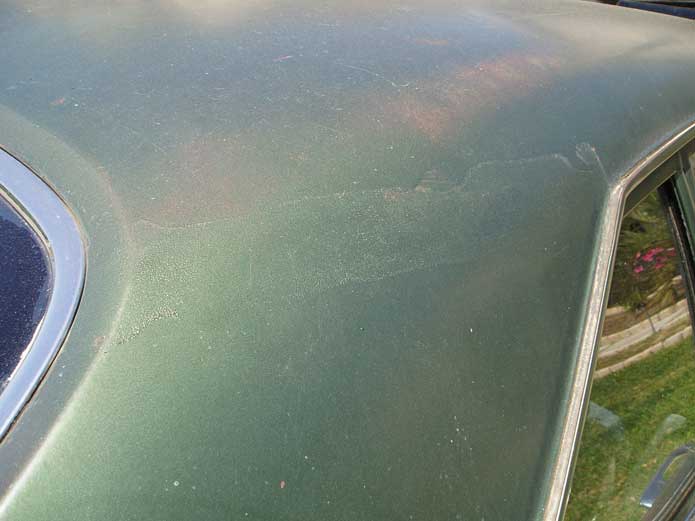

Personal note - brake fluid and paint don't get along
|
Driver side front fender
|
Picture of the passenger side
|
Picture of the driver side
|
Here are photos from the instillation of the Covan's Classic dash: |
|
Photo from previous owner showing original dash
|
This is what the interior looked like when we got the car
|
After installing the Painless Wiring harness
|
Dash with Auto Meter gauges mounted
|
The Covan's Classic dash with our gauges is mounted
|
Covan's Classic dash panel mounted with dash pad
|
Switches and ignition still need to be added to dash
|
New steering column and steering wheel will be installed next
|
|
|
